[Bluetooth] Nordic nRF51 Dongle BLE Sniffer and WireShark WireShark 사용법

오순발닦개 2020. 7. 23. 18:44
728x90







1. Prepare Device

   - Windows

  -  Bluetooth Device (Central and Peripheral)

  -  BLE sniffer module

  -  program   ble sniffer / nRFgo Studio /WireShark

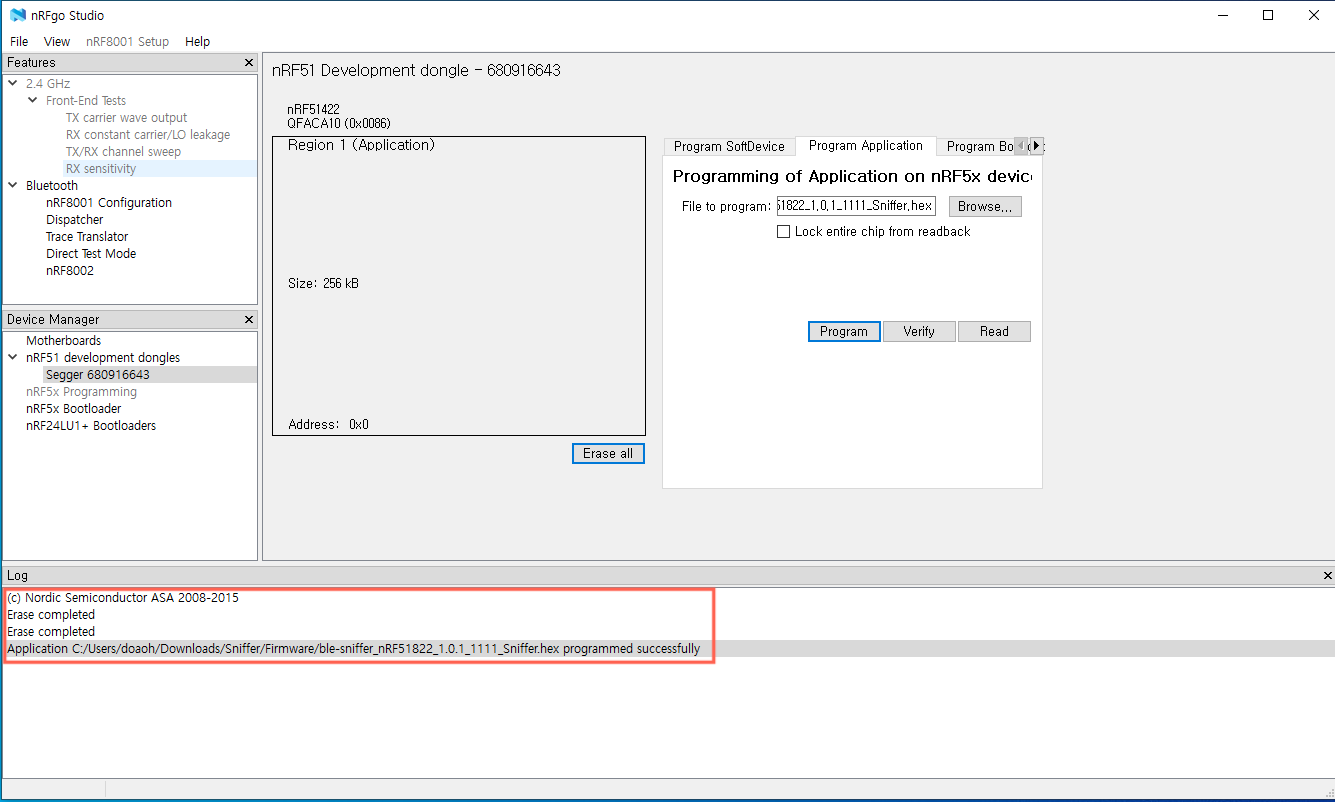

1. open nrfgo studio and insert the module into the computer  and Select ble sniffer module





2. Erase all





3. select browser  - select Hex file  - open - program









4. Update Complete













5.  install Wireshark

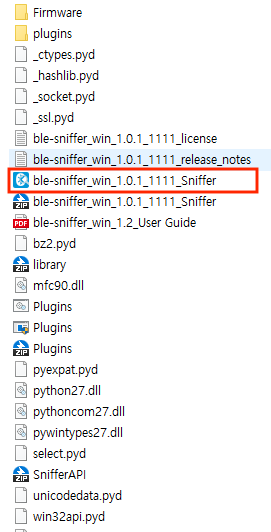

7. press ctrl + R

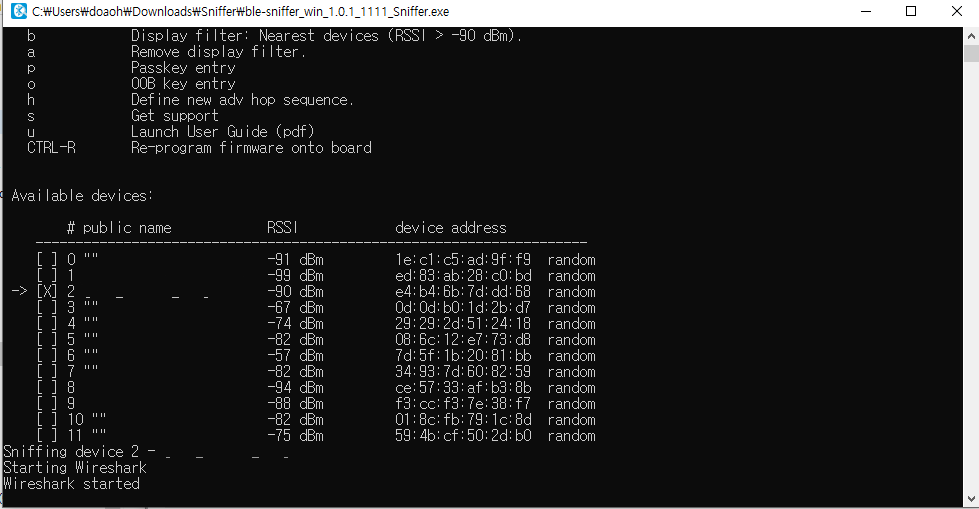

8. search blue tooth in this process,  Bluetooth device must be Broadcasting mode

9. when Bluetooth device is searched, press Device number quickly! and press w (open Wireshark)

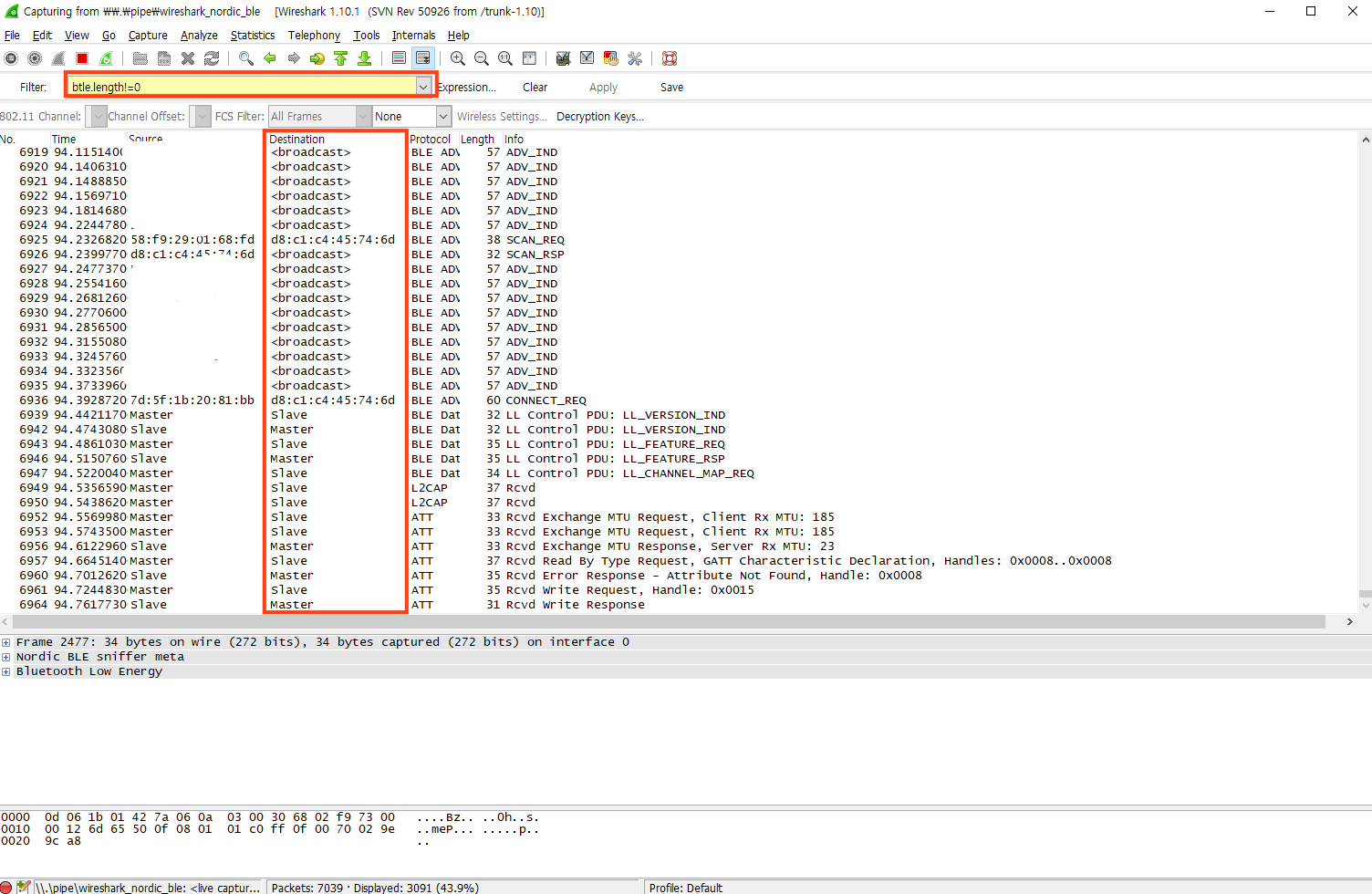

11. After open Wireshark tries to connect central and peripheral

  if connection finished, <Broadcast> turn to slave and master

   central is master, the peripheral is a slave
